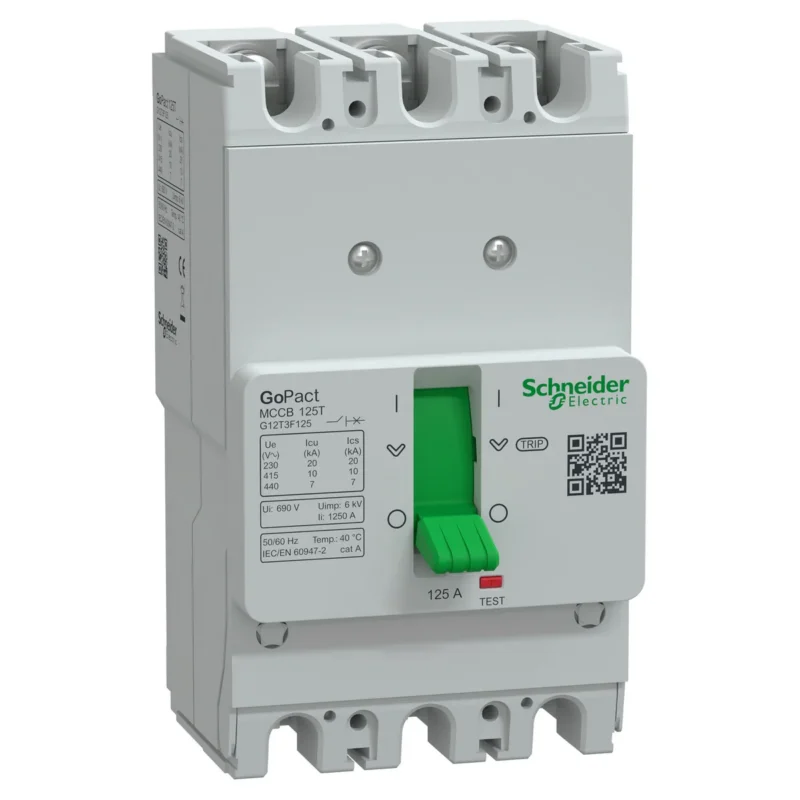

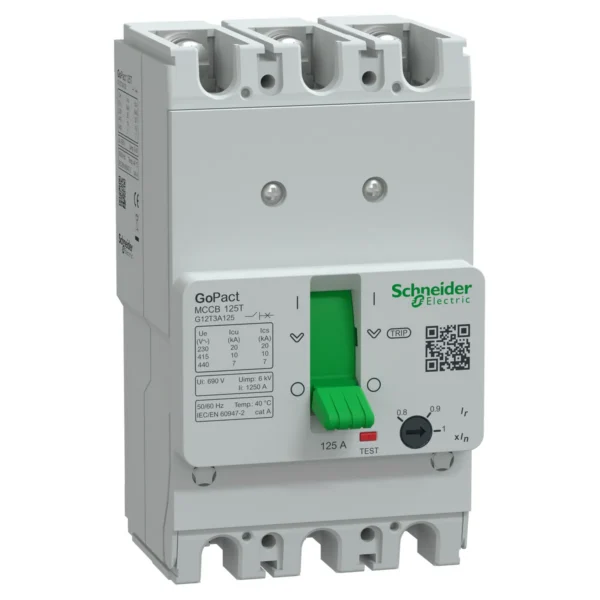

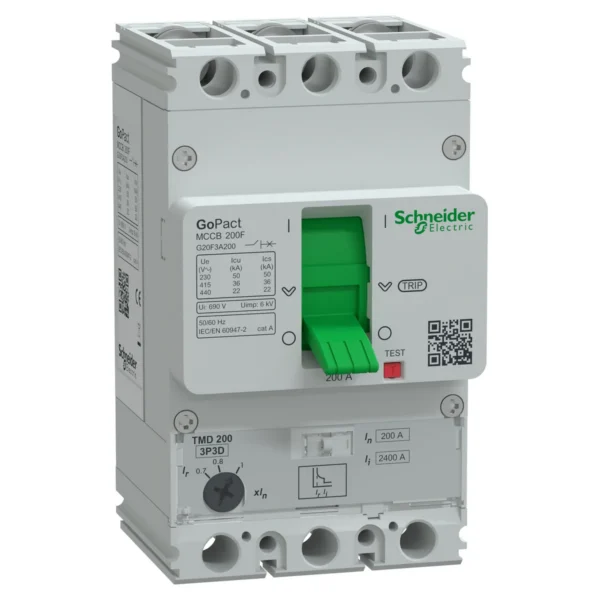

Aptomat khối MCCB Schneider GoPact
Mã dòngGoPact MCCB
Chọn trong 187 mã đặt hàngGoPact là aptomat khối MCCB của Schneider cho hệ thống phân phối điện tiêu chuẩn ở cửa hàng, nhà kho, xưởng sản xuất, dòng định mức 16–800 A, khả năng cắt 10–70 kA ở 415 V AC, gồm 187 mã.
- Chính hãng · CO/CQ
- Hóa đơn VAT
- Showroom Schneider: 45 Huỳnh Thúc Kháng
- Số cực
- 3P, 4P
- Dòng định mức
- 16–800 A
- Khả năng cắt
- 10, 15, 25, 30, 36, 50, 70 kA
- Số mã trong dòng
- 187 mã (xem bảng mã đặt hàng)
Giá thay đổi theo số lượng và thời điểm. Phòng dự án báo giá sau khi xác nhận mã và khối lượng.
Thông số kỹ thuật
| Mã dòng | GoPact MCCB |
|---|---|
| Thương hiệu | Schneider |
| Số cực | 3P, 4P |
| Dòng định mức | 16–800 A |
| Khả năng cắt | 10, 15, 25, 30, 36, 50, 70 kA |
| Số mã trong dòng | 187 mã (xem bảng mã đặt hàng) |
| Bảo hành | Theo chính sách bảo hành của Schneider Electric |
Đối chiếu thông số với catalogue của hãng trước khi đặt hàng.
Mã đặt hàng 187 mã
Tick các mã cần báo giá rồi gửi một lần.
| Mã đặt hàng | Tên mã | Thông số chính |
|---|---|---|
| Circuit breaker, GoPact MCCB 125, 3 poles, 10kA at 415VAC, 125A rating, TMD trip unit, fixed thermal protection | 3P · 125 A · 10 kA | |
| Circuit breaker, GoPact MCCB 125, 3 poles, 10kA at 415VAC, 125A rating, TMD trip unit, adjustable thermal protection | 3P · 125 A · 10 kA | |
| Circuit breaker, GoPact MCCB 200, 3 poles, 25kA at 415VAC, 200A rating, TMD trip unit, adjustable thermal protection | 3P · 200 A · 25 kA | |
| Circuit breaker, GoPact MCCB 250, 3 poles, 25kA at 415VAC, 250A, TMD trip unit, adjustable thermal protection, up to 50°C | 3P · 250 A · 25 kA | |
| Circuit breaker, GoPact MCCB 400, 3 poles, 36kA at 415VAC, 400A rating, TMD trip unit, adjustable thermal protection | 3P · 400 A · 36 kA | |
| Circuit breaker, GoPact MCCB 800, 3 poles, 50kA at 415VAC, 800A rating, TMD trip unit, adjustable thermal protection | 3P · 800 A · 50 kA | |
| Circuit breaker, GoPact MCCB 125, 4 poles, 10kA at 415VAC, 125A rating, TMD trip unit, fixed thermal protection | 4P · 125 A · 10 kA | |
| Circuit breaker, GoPact MCCB 125, 4 poles, 10kA at 415VAC, 125A rating, TMD trip unit, adjustable thermal protection | 4P · 125 A · 10 kA | |
| Circuit breaker, GoPact MCCB 200, 4 poles, 25kA at 415VAC, 200A rating, TMD trip unit, adjustable thermal protection | 4P · 200 A · 25 kA | |
| Circuit breaker, GoPact MCCB 250, 4 poles, 25kA at 415VAC, 250A, TMD trip unit, adjustable thermal protection, up to 50°C | 4P · 250 A · 25 kA | |
| Circuit breaker, GoPact MCCB 400, 4 poles, 36kA at 415VAC, 400A rating, TMD trip unit, adjustable thermal protection | 4P · 400 A · 36 kA | |
| Circuit breaker, GoPact MCCB 800, 4 poles, 50kA at 415VAC, 800A rating, TMD trip unit, adjustable thermal protection | 4P · 800 A · 50 kA | |
| Circuit breaker, GoPact MCCB 800, 4 poles, 50kA at 415VAC, 800A, ETU trip unit, adjustable thermal protection, up to 50°C | 4P · 800 A · 50 kA | |
| Circuit breaker, GoPact MCCB 800, 4 poles, 70kA at 415VAC, 800A, ETU trip unit, adjustable thermal protection, up to 50°C | 4P · 800 A · 70 kA | |
| Circuit breaker, GoPact MCCB 800, 4 poles, 50kA at 415VAC, 630A, ETU trip unit, adjustable thermal protection, up to 50°C | 4P · 630 A · 50 kA | |
| Circuit breaker, GoPact MCCB 800, 4 poles, 70kA at 415VAC, 630A, ETU trip unit, adjustable thermal protection, up to 50°C | 4P · 630 A · 70 kA | |
| Circuit breaker, GoPact MCCB 800, 4 poles, 50kA at 415VAC, 500A, ETU trip unit, adjustable thermal protection, up to 50°C | 4P · 500 A · 50 kA | |
| Circuit breaker, GoPact MCCB 800, 4 poles, 70kA at 415VAC, 500A, ETU trip unit, adjustable thermal protection, up to 50°C | 4P · 500 A · 70 kA | |
| Circuit breaker, GoPact MCCB 125, 3 poles, 15kA at 415VAC, 125A rating, TMD trip unit, fixed thermal protection | 3P · 125 A · 15 kA | |
| Circuit breaker, GoPact MCCB 125, 3 poles, 15kA at 415VAC, 125A rating, TMD trip unit, adjustable thermal protection | 3P · 125 A · 15 kA | |
| Circuit breaker, GoPact MCCB 200, 3 poles, 36kA at 415VAC, 200A rating, TMD trip unit, adjustable thermal protection | 3P · 200 A · 36 kA | |
| Circuit breaker, GoPact MCCB 250, 3 poles, 36kA at 415VAC, 250A, TMD trip unit, adjustable thermal protection, up to 50°C | 3P · 250 A · 36 kA | |
| Circuit breaker, GoPact MCCB 400, 3 poles, 50kA at 415VAC, 400A rating, TMD trip unit, adjustable thermal protection | 3P · 400 A · 50 kA | |
| Circuit breaker, GoPact MCCB 800, 3 poles, 70kA at 415VAC, 800A rating, TMD trip unit, adjustable thermal protection | 3P · 800 A · 70 kA | |
| Circuit breaker, GoPact MCCB 125, 4 poles, 15kA at 415VAC, 125A rating, TMD trip unit, fixed thermal protection | 4P · 125 A · 15 kA | |
| Circuit breaker, GoPact MCCB 125, 4 poles, 15kA at 415VAC, 125A rating, TMD trip unit, adjustable thermal protection | 4P · 125 A · 15 kA | |
| Circuit breaker, GoPact MCCB 200, 4 poles, 36kA at 415VAC, 200A rating, TMD trip unit, adjustable thermal protection | 4P · 200 A · 36 kA | |
| Circuit breaker, GoPact MCCB 250, 4 poles, 36kA at 415VAC, 250A, TMD trip unit, adjustable thermal protection, up to 50°C | 4P · 250 A · 36 kA | |
| Circuit breaker, GoPact MCCB 400, 4 poles, 50kA at 415VAC, 400A rating, TMD trip unit, adjustable thermal protection | 4P · 400 A · 50 kA | |
| Circuit breaker, GoPact MCCB 800, 4 poles, 70kA at 415VAC, 800A rating, TMD trip unit, adjustable thermal protection | 4P · 800 A · 70 kA | |
| Circuit breaker, GoPact MCCB 125, 3 poles, 30kA at 415VAC, 125A rating, TMD trip unit, fixed thermal protection | 3P · 125 A · 30 kA | |
| Circuit breaker, GoPact MCCB 125, 3 poles, 30kA at 415VAC, 125A rating, TMD trip unit, adjustable thermal protection | 3P · 125 A · 30 kA | |
| Circuit breaker, GoPact MCCB 200, 3 poles, 25kA at 415VAC, 160A rating, TMD trip unit, adjustable thermal protection | 3P · 160 A · 25 kA | |
| Circuit breaker, GoPact MCCB 250, 3 poles, 25kA at 415VAC, 200A, TMD trip unit, adjustable thermal protection, up to 50°C | 3P · 200 A · 25 kA | |
| Circuit breaker, GoPact MCCB 400, 3 poles, 36kA at 415VAC, 320A, TMD trip unit, adjustable thermal protection, up to 50°C | 3P · 320 A · 36 kA | |
| Circuit breaker, GoPact MCCB 800, 3 poles, 50kA at 415VAC, 630A, TMD trip unit, adjustable thermal protection, up to 50°C | 3P · 630 A · 50 kA | |
| Circuit breaker, GoPact MCCB 125, 4 poles, 30kA at 415VAC, 125A rating, TMD trip unit, fixed thermal protection | 4P · 125 A · 30 kA | |
| Circuit breaker, GoPact MCCB 125, 4 poles, 30kA at 415VAC, 125A rating, TMD trip unit, adjustable thermal protection | 4P · 125 A · 30 kA | |
| Circuit breaker, GoPact MCCB 200, 4 poles, 25kA at 415VAC, 160A rating, TMD trip unit, adjustable thermal protection | 4P · 160 A · 25 kA | |
| Circuit breaker, GoPact MCCB 400, 4 poles, 36kA at 415VAC, 320A, TMD trip unit, adjustable thermal protection, up to 50°C | 4P · 320 A · 36 kA | |
| Circuit breaker, GoPact MCCB 800, 4 poles, 50kA at 415VAC, 630A, TMD trip unit, adjustable thermal protection, up to 50°C | 4P · 630 A · 50 kA | |
| Circuit breaker, GoPact MCCB 125, 3 poles, 10kA at 415VAC, 100A rating, TMD trip unit, fixed thermal protection | 3P · 100 A · 10 kA | |
| Circuit breaker, GoPact MCCB 125, 3 poles, 10kA at 415VAC, 100A rating, TMD trip unit, adjustable thermal protection | 3P · 100 A · 10 kA | |
| Circuit breaker, GoPact MCCB 200, 3 poles, 36kA at 415VAC, 160A rating, TMD trip unit, adjustable thermal protection | 3P · 160 A · 36 kA | |
| Circuit breaker, GoPact MCCB 250, 3 poles, 36kA at 415VAC, 200A, TMD trip unit, adjustable thermal protection, up to 50°C | 3P · 200 A · 36 kA | |
| Circuit breaker, GoPact MCCB 400, 3 poles, 50kA at 415VAC, 320A, TMD trip unit, adjustable thermal protection, up to 50°C | 3P · 320 A · 50 kA | |
| Circuit breaker, GoPact MCCB 800, 3 poles, 70kA at 415VAC, 630A, TMD trip unit, adjustable thermal protection, up to 50°C | 3P · 630 A · 70 kA | |
| Circuit breaker, GoPact MCCB 125, 4 poles, 10kA at 415VAC, 100A rating, TMD trip unit, fixed thermal protection | 4P · 100 A · 10 kA | |
| Circuit breaker, GoPact MCCB 125, 4 poles, 10kA at 415VAC, 100A rating, TMD trip unit, adjustable thermal protection | 4P · 100 A · 10 kA | |
| Circuit breaker, GoPact MCCB 200, 4 poles, 36kA at 415VAC, 160A rating, TMD trip unit, adjustable thermal protection | 4P · 160 A · 36 kA | |
| Circuit breaker, GoPact MCCB 400, 4 poles, 50kA at 415VAC, 320A, TMD trip unit, adjustable thermal protection, up to 50°C | 4P · 320 A · 50 kA | |
| Circuit breaker, GoPact MCCB 800, 4 poles, 70kA at 415VAC, 630A, TMD trip unit, adjustable thermal protection, up to 50°C | 4P · 630 A · 70 kA | |
| Circuit breaker, GoPact MCCB 125, 3 poles, 15kA at 415VAC, 100A rating, TMD trip unit, fixed thermal protection | 3P · 100 A · 15 kA | |
| Circuit breaker, GoPact MCCB 125, 3 poles, 15kA at 415VAC, 100A rating, TMD trip unit, adjustable thermal protection | 3P · 100 A · 15 kA | |
| Circuit breaker, GoPact MCCB 200, 3 poles, 25kA at 415VAC, 125A, TMD trip unit, adjustable thermal protection, up to 50°C | 3P · 125 A · 25 kA | |
| Circuit breaker, GoPact MCCB 250, 3 poles, 25kA at 415VAC, 160A, TMD trip unit, adjustable thermal protection, up to 50°C | 3P · 160 A · 25 kA | |
| Circuit breaker, GoPact MCCB 800, 3 poles, 50kA at 415VAC, 500A, TMD trip unit, adjustable thermal protection, up to 50°C | 3P · 500 A · 50 kA | |
| Circuit breaker, GoPact MCCB 125, 4 poles, 15kA at 415VAC, 100A rating, TMD trip unit, fixed thermal protection | 4P · 100 A · 15 kA | |
| Circuit breaker, GoPact MCCB 125, 4 poles, 15kA at 415VAC, 100A rating, TMD trip unit, adjustable thermal protection | 4P · 100 A · 15 kA | |
| Circuit breaker, GoPact MCCB 200, 4 poles, 25kA at 415VAC, 125A, TMD trip unit, adjustable thermal protection, up to 50°C | 4P · 125 A · 25 kA | |
| Circuit breaker, GoPact MCCB 800, 4 poles, 50kA at 415VAC, 500A, TMD trip unit, adjustable thermal protection, up to 50°C | 4P · 500 A · 50 kA | |
| Circuit breaker, GoPact MCCB 125, 3 poles, 30kA at 415VAC, 100A rating, TMD trip unit, fixed thermal protection | 3P · 100 A · 30 kA | |
| Circuit breaker, GoPact MCCB 125, 3 poles, 30kA at 415VAC, 100A rating, TMD trip unit, adjustable thermal protection | 3P · 100 A · 30 kA | |
| Circuit breaker, GoPact MCCB 200, 3 poles, 36kA at 415VAC, 125A, TMD trip unit, adjustable thermal protection, up to 50°C | 3P · 125 A · 36 kA | |
| Circuit breaker, GoPact MCCB 250, 3 poles, 36kA at 415VAC, 160A, TMD trip unit, adjustable thermal protection, up to 50°C | 3P · 160 A · 36 kA | |
| Circuit breaker, GoPact MCCB 400, 3 poles, 50kA at 415VAC, 250A, TMD trip unit, adjustable thermal protection, up to 50°C | 3P · 250 A · 50 kA | |
| Circuit breaker, GoPact MCCB 800, 3 poles, 70kA at 415VAC, 500A, TMD trip unit, adjustable thermal protection, up to 50°C | 3P · 500 A · 70 kA | |
| Circuit breaker, GoPact MCCB 125, 4 poles, 30kA at 415VAC, 100A rating, TMD trip unit, fixed thermal protection | 4P · 100 A · 30 kA | |
| Circuit breaker, GoPact MCCB 125, 4 poles, 30kA at 415VAC, 100A rating, TMD trip unit, adjustable thermal protection | 4P · 100 A · 30 kA | |
| Circuit breaker, GoPact MCCB 200, 4 poles, 36kA at 415VAC, 125A, TMD trip unit, adjustable thermal protection, up to 50°C | 4P · 125 A · 36 kA | |
| Circuit breaker, GoPact MCCB 800, 4 poles, 70kA at 415VAC, 500A, TMD trip unit, adjustable thermal protection, up to 50°C | 4P · 500 A · 70 kA | |
| Circuit breaker, GoPact MCCB 125, 3 poles, 10kA at 415VAC, 80A rating, TMD trip unit, fixed thermal protection | 3P · 80 A · 10 kA | |
| Circuit breaker, GoPact MCCB 125, 3 poles, 10kA at 415VAC, 80A rating, TMD trip unit, adjustable thermal protection | 3P · 80 A · 10 kA | |
| Circuit breaker, GoPact MCCB 200, 3 poles, 25kA at 415VAC, 100A, TMD trip unit, adjustable thermal protection, up to 50°C | 3P · 100 A · 25 kA | |
| Circuit breaker, GoPact MCCB 125, 4 poles, 10kA at 415VAC, 80A rating, TMD trip unit, fixed thermal protection | 4P · 80 A · 10 kA | |
| Circuit breaker, GoPact MCCB 125, 4 poles, 10kA at 415VAC, 80A rating, TMD trip unit, adjustable thermal protection | 4P · 80 A · 10 kA | |
| Circuit breaker, GoPact MCCB 200, 4 poles, 25kA at 415VAC, 100A, TMD trip unit, adjustable thermal protection, up to 50°C | 4P · 100 A · 25 kA | |
| Circuit breaker, GoPact MCCB 125, 3 poles, 15kA at 415VAC, 80A rating, TMD trip unit, fixed thermal protection | 3P · 80 A · 15 kA | |
| Circuit breaker, GoPact MCCB 125, 3 poles, 15kA at 415VAC, 80A rating, TMD trip unit, adjustable thermal protection | 3P · 80 A · 15 kA | |
| Circuit breaker, GoPact MCCB 200, 3 poles, 36kA at 415VAC, 100A, TMD trip unit, adjustable thermal protection, up to 50°C | 3P · 100 A · 36 kA | |
| Circuit breaker, GoPact MCCB 125, 4 poles, 15kA at 415VAC, 80A rating, TMD trip unit, fixed thermal protection | 4P · 80 A · 15 kA | |
| Circuit breaker, GoPact MCCB 125, 4 poles, 15kA at 415VAC, 80A rating, TMD trip unit, adjustable thermal protection | 4P · 80 A · 15 kA | |
| Circuit breaker, GoPact MCCB 200, 4 poles, 36kA at 415VAC, 100A, TMD trip unit, adjustable thermal protection, up to 50°C | 4P · 100 A · 36 kA | |
| Circuit breaker, GoPact MCCB 125, 3 poles, 30kA at 415VAC, 80A rating, TMD trip unit, fixed thermal protection | 3P · 80 A · 30 kA | |
| Circuit breaker, GoPact MCCB 125, 3 poles, 30kA at 415VAC, 80A rating, TMD trip unit, adjustable thermal protection | 3P · 80 A · 30 kA | |
| Circuit breaker, GoPact MCCB 200, 3 poles, 25kA at 415VAC, 80A, TMD trip unit, adjustable thermal protection, up to 50°C | 3P · 80 A · 25 kA | |
| Circuit breaker, GoPact MCCB 125, 4 poles, 30kA at 415VAC, 80A rating, TMD trip unit, fixed thermal protection | 4P · 80 A · 30 kA | |
| Circuit breaker, GoPact MCCB 125, 4 poles, 30kA at 415VAC, 80A rating, TMD trip unit, adjustable thermal protection | 4P · 80 A · 30 kA | |
| Circuit breaker, GoPact MCCB 200, 4 poles, 25kA at 415VAC, 80A, TMD trip unit, adjustable thermal protection, up to 50°C | 4P · 80 A · 25 kA | |
| Circuit breaker, GoPact MCCB 125, 3 poles, 10kA at 415VAC, 63A rating, TMD trip unit, fixed thermal protection | 3P · 63 A · 10 kA | |
| Circuit breaker, GoPact MCCB 125, 3 poles, 10kA at 415VAC, 63A rating, TMD trip unit, adjustable thermal protection | 3P · 63 A · 10 kA | |
| Circuit breaker, GoPact MCCB 200, 3 poles, 36kA at 415VAC, 80A, TMD trip unit, adjustable thermal protection, up to 50°C | 3P · 80 A · 36 kA | |
| Circuit breaker, GoPact MCCB 125, 4 poles, 10kA at 415VAC, 63A rating, TMD trip unit, fixed thermal protection | 4P · 63 A · 10 kA | |
| Circuit breaker, GoPact MCCB 125, 4 poles, 10kA at 415VAC, 63A rating, TMD trip unit, adjustable thermal protection | 4P · 63 A · 10 kA | |
| Circuit breaker, GoPact MCCB 200, 4 poles, 36kA at 415VAC, 80A, TMD trip unit, adjustable thermal protection, up to 50°C | 4P · 80 A · 36 kA | |
| Circuit breaker, GoPact MCCB 125, 3 poles, 15kA at 415VAC, 63A rating, TMD trip unit, fixed thermal protection | 3P · 63 A · 15 kA | |
| Circuit breaker, GoPact MCCB 125, 3 poles, 15kA at 415VAC, 63A rating, TMD trip unit, adjustable thermal protection | 3P · 63 A · 15 kA | |
| Circuit breaker, GoPact MCCB 200, 3 poles, 25kA at 415VAC, 63A, TMD trip unit, adjustable thermal protection, up to 50°C | 3P · 63 A · 25 kA | |
| Circuit breaker, GoPact MCCB 125, 4 poles, 15kA at 415VAC, 63A rating, TMD trip unit, fixed thermal protection | 4P · 63 A · 15 kA | |
| Circuit breaker, GoPact MCCB 125, 4 poles, 15kA at 415VAC, 63A rating, TMD trip unit, adjustable thermal protection | 4P · 63 A · 15 kA | |
| Circuit breaker, GoPact MCCB 200, 4 poles, 25kA at 415VAC, 63A, TMD trip unit, adjustable thermal protection, up to 50°C | 4P · 63 A · 25 kA | |
| Circuit breaker, GoPact MCCB 125, 3 poles, 30kA at 415VAC, 63A rating, TMD trip unit, fixed thermal protection | 3P · 63 A · 30 kA | |
| Circuit breaker, GoPact MCCB 125, 3 poles, 30kA at 415VAC, 63A rating, TMD trip unit, adjustable thermal protection | 3P · 63 A · 30 kA | |
| Circuit breaker, GoPact MCCB 200, 3 poles, 36kA at 415VAC, 63A, TMD trip unit, adjustable thermal protection, up to 50°C | 3P · 63 A · 36 kA | |
| Circuit breaker, GoPact MCCB 125, 4 poles, 30kA at 415VAC, 63A rating, TMD trip unit, fixed thermal protection | 4P · 63 A · 30 kA | |
| Circuit breaker, GoPact MCCB 125, 4 poles, 30kA at 415VAC, 63A rating, TMD trip unit, adjustable thermal protection | 4P · 63 A · 30 kA | |
| Circuit breaker, GoPact MCCB 200, 4 poles, 36kA at 415VAC, 63A, TMD trip unit, adjustable thermal protection, up to 50°C | 4P · 63 A · 36 kA | |
| Circuit breaker, GoPact MCCB 125, 3 poles, 10kA at 415VAC, 50A rating, TMD trip unit, fixed thermal protection | 3P · 50 A · 10 kA | |
| Circuit breaker, GoPact MCCB 125, 3 poles, 10kA at 415VAC, 50A rating, TMD trip unit, adjustable thermal protection | 3P · 50 A · 10 kA | |
| Circuit breaker, GoPact MCCB 200, 3 poles, 25kA at 415VAC, 50A, TMD trip unit, adjustable thermal protection, up to 50°C | 3P · 50 A · 25 kA | |
| Circuit breaker, GoPact MCCB 125, 4 poles, 10kA at 415VAC, 50A rating, TMD trip unit, fixed thermal protection | 4P · 50 A · 10 kA | |
| Circuit breaker, GoPact MCCB 125, 4 poles, 10kA at 415VAC, 50A rating, TMD trip unit, adjustable thermal protection | 4P · 50 A · 10 kA | |
| Circuit breaker, GoPact MCCB 200, 4 poles, 25kA at 415VAC, 50A, TMD trip unit, adjustable thermal protection, up to 50°C | 4P · 50 A · 25 kA | |
| Circuit breaker, GoPact MCCB 125, 3 poles, 15kA at 415VAC, 50A rating, TMD trip unit, fixed thermal protection | 3P · 50 A · 15 kA | |
| Circuit breaker, GoPact MCCB 125, 3 poles, 15kA at 415VAC, 50A rating, TMD trip unit, adjustable thermal protection | 3P · 50 A · 15 kA | |
| Circuit breaker, GoPact MCCB 200, 3 poles, 36kA at 415VAC, 50A, TMD trip unit, adjustable thermal protection, up to 50°C | 3P · 50 A · 36 kA | |
| Circuit breaker, GoPact MCCB 125, 4 poles, 15kA at 415VAC, 50A rating, TMD trip unit, fixed thermal protection | 4P · 50 A · 15 kA | |
| Circuit breaker, GoPact MCCB 125, 4 poles, 15kA at 415VAC, 50A rating, TMD trip unit, adjustable thermal protection | 4P · 50 A · 15 kA | |
| Circuit breaker, GoPact MCCB 200, 4 poles, 36kA at 415VAC, 50A, TMD trip unit, adjustable thermal protection, up to 50°C | 4P · 50 A · 36 kA | |
| Circuit breaker, GoPact MCCB 125, 3 poles, 30kA at 415VAC, 50A rating, TMD trip unit, fixed thermal protection | 3P · 50 A · 30 kA | |
| Circuit breaker, GoPact MCCB 125, 3 poles, 30kA at 415VAC, 50A rating, TMD trip unit, adjustable thermal protection | 3P · 50 A · 30 kA | |
| Circuit breaker, GoPact MCCB 200, 3 poles, 25kA at 415VAC, 40A, TMD trip unit, adjustable thermal protection, up to 50°C | 3P · 40 A · 25 kA | |
| Circuit breaker, GoPact MCCB 125, 4 poles, 30kA at 415VAC, 50A rating, TMD trip unit, fixed thermal protection | 4P · 50 A · 30 kA | |
| Circuit breaker, GoPact MCCB 125, 4 poles, 30kA at 415VAC, 50A rating, TMD trip unit, adjustable thermal protection | 4P · 50 A · 30 kA | |
| Circuit breaker, GoPact MCCB 200, 4 poles, 25kA at 415VAC, 40A, TMD trip unit, adjustable thermal protection, up to 50°C | 4P · 40 A · 25 kA | |
| Circuit breaker, GoPact MCCB 125, 3 poles, 10kA at 415VAC, 40A rating, TMD trip unit, fixed thermal protection | 3P · 40 A · 10 kA | |
| Circuit breaker, GoPact MCCB 125, 3 poles, 10kA at 415VAC, 40A rating, TMD trip unit, adjustable thermal protection | 3P · 40 A · 10 kA | |
| Circuit breaker, GoPact MCCB 200, 3 poles, 36kA at 415VAC, 40A, TMD trip unit, adjustable thermal protection, up to 50°C | 3P · 40 A · 36 kA | |
| Circuit breaker, GoPact MCCB 125, 4 poles, 10kA at 415VAC, 40A rating, TMD trip unit, fixed thermal protection | 4P · 40 A · 10 kA | |
| Circuit breaker, GoPact MCCB 125, 4 poles, 10kA at 415VAC, 40A rating, TMD trip unit, adjustable thermal protection | 4P · 40 A · 10 kA | |
| Circuit breaker, GoPact MCCB 200, 4 poles, 36kA at 415VAC, 40A, TMD trip unit, adjustable thermal protection, up to 50°C | 4P · 40 A · 36 kA | |
| Circuit breaker, GoPact MCCB 125, 3 poles, 15kA at 415VAC, 40A rating, TMD trip unit, fixed thermal protection | 3P · 40 A · 15 kA | |
| Circuit breaker, GoPact MCCB 125, 3 poles, 15kA at 415VAC, 40A rating, TMD trip unit, adjustable thermal protection | 3P · 40 A · 15 kA | |
| Circuit breaker, GoPact MCCB 125, 4 poles, 15kA at 415VAC, 40A rating, TMD trip unit, fixed thermal protection | 4P · 40 A · 15 kA | |
| Circuit breaker, GoPact MCCB 125, 4 poles, 15kA at 415VAC, 40A rating, TMD trip unit, adjustable thermal protection | 4P · 40 A · 15 kA | |
| Circuit breaker, GoPact MCCB 125, 3 poles, 30kA at 415VAC, 40A rating, TMD trip unit, fixed thermal protection | 3P · 40 A · 30 kA | |
| Circuit breaker, GoPact MCCB 125, 3 poles, 30kA at 415VAC, 40A rating, TMD trip unit, adjustable thermal protection | 3P · 40 A · 30 kA | |
| Circuit breaker, GoPact MCCB 125, 4 poles, 30kA at 415VAC, 40A rating, TMD trip unit, fixed thermal protection | 4P · 40 A · 30 kA | |
| Circuit breaker, GoPact MCCB 125, 4 poles, 30kA at 415VAC, 40A rating, TMD trip unit, adjustable thermal protection | 4P · 40 A · 30 kA | |
| Circuit breaker, GoPact MCCB 125, 3 poles, 10kA at 415VAC, 32A rating, TMD trip unit, fixed thermal protection | 3P · 32 A · 10 kA | |
| Circuit breaker, GoPact MCCB 125, 3 poles, 10kA at 415VAC, 32A rating, TMD trip unit, adjustable thermal protection | 3P · 32 A · 10 kA | |
| Circuit breaker, GoPact MCCB 125, 4 poles, 10kA at 415VAC, 32A rating, TMD trip unit, fixed thermal protection | 4P · 32 A · 10 kA | |
| Circuit breaker, GoPact MCCB 125, 4 poles, 10kA at 415VAC, 32A rating, TMD trip unit, adjustable thermal protection | 4P · 32 A · 10 kA | |
| Circuit breaker, GoPact MCCB 125, 3 poles, 15kA at 415VAC, 32A rating, TMD trip unit, fixed thermal protection | 3P · 32 A · 15 kA | |
| Circuit breaker, GoPact MCCB 125, 3 poles, 15kA at 415VAC, 32A rating, TMD trip unit, adjustable thermal protection | 3P · 32 A · 15 kA | |
| Circuit breaker, GoPact MCCB 125, 4 poles, 15kA at 415VAC, 32A rating, TMD trip unit, fixed thermal protection | 4P · 32 A · 15 kA | |
| Circuit breaker, GoPact MCCB 125, 4 poles, 15kA at 415VAC, 32A rating, TMD trip unit, adjustable thermal protection | 4P · 32 A · 15 kA | |
| Circuit breaker, GoPact MCCB 125, 3 poles, 30kA at 415VAC, 32A rating, TMD trip unit, fixed thermal protection | 3P · 32 A · 30 kA | |
| Circuit breaker, GoPact MCCB 125, 3 poles, 30kA at 415VAC, 32A rating, TMD trip unit, adjustable thermal protection | 3P · 32 A · 30 kA | |
| Circuit breaker, GoPact MCCB 125, 4 poles, 30kA at 415VAC, 32A rating, TMD trip unit, fixed thermal protection | 4P · 32 A · 30 kA | |
| Circuit breaker, GoPact MCCB 125, 4 poles, 30kA at 415VAC, 32A rating, TMD trip unit, adjustable thermal protection | 4P · 32 A · 30 kA | |
| Circuit breaker, GoPact MCCB 125, 3 poles, 10kA at 415VAC, 25A rating, TMD trip unit, fixed thermal protection | 3P · 25 A · 10 kA | |
| Circuit breaker, GoPact MCCB 125, 3 poles, 10kA at 415VAC, 25A rating, TMD trip unit, adjustable thermal protection | 3P · 25 A · 10 kA | |
| Circuit breaker, GoPact MCCB 125, 4 poles, 10kA at 415VAC, 25A rating, TMD trip unit, fixed thermal protection | 4P · 25 A · 10 kA | |
| Circuit breaker, GoPact MCCB 125, 4 poles, 10kA at 415VAC, 25A rating, TMD trip unit, adjustable thermal protection | 4P · 25 A · 10 kA | |
| Circuit breaker, GoPact MCCB 125, 3 poles, 15kA at 415VAC, 25A rating, TMD trip unit, fixed thermal protection | 3P · 25 A · 15 kA | |
| Circuit breaker, GoPact MCCB 125, 3 poles, 15kA at 415VAC, 25A rating, TMD trip unit, adjustable thermal protection | 3P · 25 A · 15 kA | |
| Circuit breaker, GoPact MCCB 125, 4 poles, 15kA at 415VAC, 25A rating, TMD trip unit, fixed thermal protection | 4P · 25 A · 15 kA | |
| Circuit breaker, GoPact MCCB 125, 4 poles, 15kA at 415VAC, 25A rating, TMD trip unit, adjustable thermal protection | 4P · 25 A · 15 kA | |
| Circuit breaker, GoPact MCCB 125, 3 poles, 30kA at 415VAC, 25A rating, TMD trip unit, fixed thermal protection | 3P · 25 A · 30 kA | |
| Circuit breaker, GoPact MCCB 125, 3 poles, 30kA at 415VAC, 25A rating, TMD trip unit, adjustable thermal protection | 3P · 25 A · 30 kA | |
| Circuit breaker, GoPact MCCB 125, 4 poles, 30kA at 415VAC, 25A rating, TMD trip unit, fixed thermal protection | 4P · 25 A · 30 kA | |
| Circuit breaker, GoPact MCCB 125, 4 poles, 30kA at 415VAC, 25A rating, TMD trip unit, adjustable thermal protection | 4P · 25 A · 30 kA | |
| Circuit breaker, GoPact MCCB 125, 3 poles, 10kA at 415VAC, 20A rating, TMD trip unit, fixed thermal protection | 3P · 20 A · 10 kA | |
| Circuit breaker, GoPact MCCB 125, 3 poles, 10kA at 415VAC, 20A rating, TMD trip unit, adjustable thermal protection | 3P · 20 A · 10 kA | |
| Circuit breaker, GoPact MCCB 125, 4 poles, 10kA at 415VAC, 20A rating, TMD trip unit, fixed thermal protection | 4P · 20 A · 10 kA | |
| Circuit breaker, GoPact MCCB 125, 4 poles, 10kA at 415VAC, 20A rating, TMD trip unit, adjustable thermal protection | 4P · 20 A · 10 kA | |
| Circuit breaker, GoPact MCCB 125, 3 poles, 15kA at 415VAC, 20A rating, TMD trip unit, fixed thermal protection | 3P · 20 A · 15 kA | |
| Circuit breaker, GoPact MCCB 125, 3 poles, 15kA at 415VAC, 20A rating, TMD trip unit, adjustable thermal protection | 3P · 20 A · 15 kA | |
| Circuit breaker, GoPact MCCB 125, 4 poles, 15kA at 415VAC, 20A rating, TMD trip unit, fixed thermal protection | 4P · 20 A · 15 kA | |
| Circuit breaker, GoPact MCCB 125, 4 poles, 15kA at 415VAC, 20A rating, TMD trip unit, adjustable thermal protection | 4P · 20 A · 15 kA | |
| Circuit breaker, GoPact MCCB 125, 3 poles, 30kA at 415VAC, 20A rating, TMD trip unit, fixed thermal protection | 3P · 20 A · 30 kA | |
| Circuit breaker, GoPact MCCB 125, 3 poles, 30kA at 415VAC, 20A rating, TMD trip unit, adjustable thermal protection | 3P · 20 A · 30 kA | |
| Circuit breaker, GoPact MCCB 125, 4 poles, 30kA at 415VAC, 20A rating, TMD trip unit, fixed thermal protection | 4P · 20 A · 30 kA | |
| Circuit breaker, GoPact MCCB 125, 4 poles, 30kA at 415VAC, 20A rating, TMD trip unit, adjustable thermal protection | 4P · 20 A · 30 kA | |
| Circuit breaker, GoPact MCCB 125, 3 poles, 10kA at 415VAC, 16A rating, TMD trip unit, fixed thermal protection | 3P · 16 A · 10 kA | |
| Circuit breaker, GoPact MCCB 125, 3 poles, 10kA at 415VAC, 16A rating, TMD trip unit, adjustable thermal protection | 3P · 16 A · 10 kA | |
| Circuit breaker, GoPact MCCB 125, 4 poles, 10kA at 415VAC, 16A rating, TMD trip unit, fixed thermal protection | 4P · 16 A · 10 kA | |
| Circuit breaker, GoPact MCCB 125, 4 poles, 10kA at 415VAC, 16A rating, TMD trip unit, adjustable thermal protection | 4P · 16 A · 10 kA | |
| Circuit breaker, GoPact MCCB 125, 3 poles, 15kA at 415VAC, 16A rating, TMD trip unit, fixed thermal protection | 3P · 16 A · 15 kA | |
| Circuit breaker, GoPact MCCB 125, 3 poles, 15kA at 415VAC, 16A rating, TMD trip unit, adjustable thermal protection | 3P · 16 A · 15 kA | |
| Circuit breaker, GoPact MCCB 125, 4 poles, 15kA at 415VAC, 16A rating, TMD trip unit, fixed thermal protection | 4P · 16 A · 15 kA | |
| Circuit breaker, GoPact MCCB 125, 4 poles, 15kA at 415VAC, 16A rating, TMD trip unit, adjustable thermal protection | 4P · 16 A · 15 kA | |
| Circuit breaker, GoPact MCCB 125, 3 poles, 30kA at 415VAC, 16A rating, TMD trip unit, fixed thermal protection | 3P · 16 A · 30 kA | |
| Circuit breaker, GoPact MCCB 125, 3 poles, 30kA at 415VAC, 16A rating, TMD trip unit, adjustable thermal protection | 3P · 16 A · 30 kA | |
| Circuit breaker, GoPact MCCB 125, 4 poles, 30kA at 415VAC, 16A rating, TMD trip unit, fixed thermal protection | 4P · 16 A · 30 kA | |
| Circuit breaker, GoPact MCCB 125, 4 poles, 30kA at 415VAC, 16A rating, TMD trip unit, adjustable thermal protection | 4P · 16 A · 30 kA |
Không có mã khớp. Anh/chị thử từ khóa khác hoặc gửi yêu cầu để Phú An Khang tìm mã giúp.
Mô tả sản phẩm
GoPact MCCB là dòng aptomat khối được Schneider đơn giản hóa cho hệ thống phân phối điện tiêu chuẩn, như cửa hàng, nhà kho, trại gà, xưởng dệt, dây chuyền đóng gói và nhà ở. Dòng định mức 16–800 A chia năm kích thước khung, khả năng cắt 10–70 kA ở 415 V AC.
Đặc điểm
- Bộ bảo vệ từ nhiệt TMD chỉnh được trên toàn dải; khung 125 có thêm bản bảo vệ nhiệt cố định, khung 800 có thêm bộ bảo vệ điện tử ETU cho 500–800 A.
- Mọi cực đều có bảo vệ, ở cả bản 3P3D và 4P4D.
- Theo Schneider, Ics = Icu ở các mức cắt, trừ mức 30 kA.
- Theo Schneider, máy cắt có tuổi thọ cơ, điện dài và làm việc ổn định cả khi nhiệt độ cao; nhiều mã ghi bảo vệ nhiệt dùng đến 50 °C.
- Mã QR để tra thông tin sản phẩm theo số seri.
Cách chọn mã
Chọn khung theo dòng tải rồi chọn mức cắt theo dòng ngắn mạch: khung 125 có 10, 15, 30 kA; khung 200 và 250 có 25, 36 kA; khung 400 có 36, 50 kA; khung 800 có 50, 70 kA (ở 415 V AC). Sau đó chọn 3 cực hay 4 cực, bảo vệ nhiệt cố định hay chỉnh được trong bảng mã đặt hàng bên dưới.
Lưu ý lắp đặt
Aptomat khối cần thợ điện có chuyên môn lắp đặt, đấu nối khi đã ngắt nguồn. Ngưỡng bảo vệ nhiệt chỉnh theo dòng tải thực tế và tiết diện dây.
Anh/chị gửi mã đặt hàng trong bảng qua trang nhận báo giá để Phú An Khang báo giá. Xem thêm aptomat MCCB, ACB Schneider, thiết bị điện Schneider và chính sách bảo hành.
Câu hỏi thường gặp
Bản bảo vệ nhiệt cố định và chỉnh được của GoPact khác nhau thế nào?
Bản cố định (fixed) có ngưỡng bảo vệ nhiệt đặt sẵn, chỉ có ở khung 125. Bản chỉnh được (adjustable) có ở mọi khung, cho phép chỉnh ngưỡng nhiệt trong phạm vi để sát với tải.
GoPact có bộ bảo vệ điện tử không?
Có. Khung 800 có các mã dùng bộ bảo vệ điện tử ETU ở 500, 630 và 800 A, loại 4 cực, khả năng cắt 50 kA hoặc 70 kA ở 415 V AC.
Tài liệu liên quan
Sản phẩm cùng nhóm
Rơ le điện tử bảo vệ động cơ Schneider TeSys Giga LR9G
Mã TeSys Giga LR9G
- Dải chỉnh dòng28–630 A
- Cấp ngắtclass 5E–30E
Hệ quản lý động cơ Schneider TeSys island
Mã TeSys island
- Dòng định mức9, 25, 38, 65, 66 A
- Công suất động cơ4, 11, 18,5, 30, 37 kW
Cần báo giá cả danh sách vật tư?
Thêm sản phẩm vào danh sách tư vấn hoặc gửi file BOQ. Phòng dự án báo giá theo khối lượng và tiến độ giao hàng.
